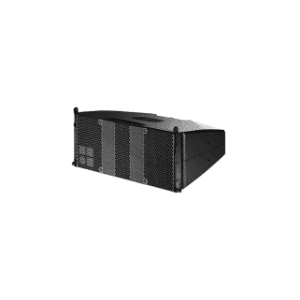

The T10 is a passive 2-way loudspeaker housing two 6.5" drivers positioned in a dipolar arrangement and a 1.4" HF compression driver and a passive crossover network. The T10 can be used both as a line array and as a high directivity point source loudspeaker. The HF driver is fitted to a unique waveguide horn producing vertical line source directivity with a 90° horizontal pattern that is maintained down to approximately 600 Hz. An acoustic lens placed in front of the horn widens horizontal dispersion to 105°, and rotation of the horn by 90° relative to this produces an accurate point source dispersion, transforming a vertically oriented T10 into a stand-alone full range loudspeaker with 90° horizontal and 35° vertical directivity pattern. The T10 cabinet is constructed from polyurethane integral hard foam, incorporates integrated line array rigging hardware, and has an impact-resistant finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, and two NL4 connectors wired in parallel are mounted on the rear panel.
