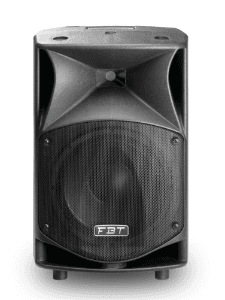

FBT J Maxx 114A Loudspeaker

Product information

More from FBT Elettronica SpA

ID: 49473


Description

The FBT JMaxX 114A two-way active reinforcement speaker system shall incorporate a 1 x 14" LF woofer with a 2.5" voice coil and 1" exit throat HF compression driver with 1.4" voice coil coupled to a 90°H x 60°V constant directivity horn. The asymmetrical shape also allows use as a stage floor monitor at 12°, 40°, and 55°. The FBT JMaxX 114A shall meet the following performance criteria: frequency response of 45Hz to 20kHz, maximum SPL of 132 dB, 700W RMS + 200W RMS Class D power amplifiers. The FBT JMaxX 114A provides a DSP with 4 factory equalization presets. With its eye-catching gas-injected forms designed to virtually eliminate undesired enclosure resonance and reinforce strong low-frequency performance, The FBT JMaxX provides myriad possibilities for bands, DJs, and solo artists. A front-face steel grille protects the woofer from external damage. The control panel provides XLR/Jack input, XLR link, level, preset switch, HP filter button, line/mic button, two status led (PRT-LIMITER / ON). The two M10 fly points built into the cabinet, along with the optional mounting bracket, allow the FBT JMaxX 114A speaker to be surface mounted on walls or ceilings and the standard 1.38" speaker stand socket allows the FBTJMaxX 114A to be mounted on a speaker stand.
